Description

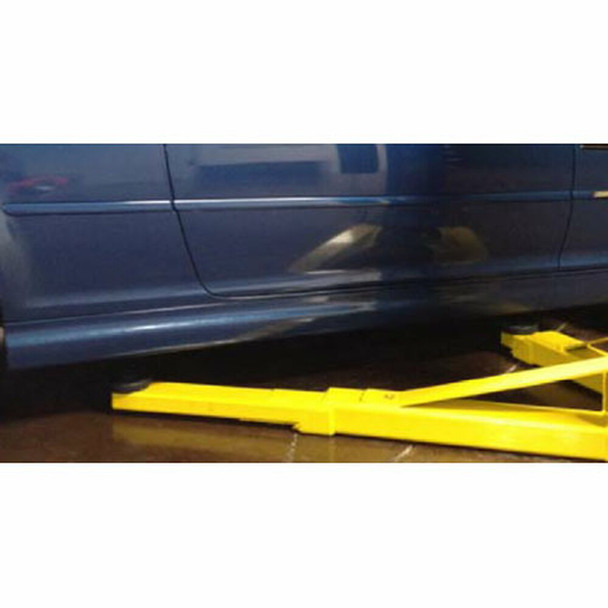

The powerful and secure XPR-10AS-168 is an incredibly rapid two?post lift with a robust menu of features to increase efficiency and productivity. Extended height columns provide added overhead clearance and an adjustable width design allows you to choose the best setting for your specific space or vehicle lifting requirements. This true asymmetric lift features 30° rotated columns for added door-opening clearance and interior car access. The exclusive Tru-Metric carriage and arm design combines to give users the ability to load vehicles either symmetrically (centerline of vehicle at column) or asymmetrically (centerline of vehicle behind column). Lift arms shown with optional foot guards 10,000-lb. lifting capacity Bolt-on 24" column extensions provide added overhead clearance Expandable top beam accommodates wide or narrow drive-thru configuration Padded overhead safety shutoff bar Exclusive Tru-Metric arm design for more versatile arm positioning 30° rotated single-piece columns Single-point safety release Drop-end arms provide a lower pad height Dual hydraulic direct-drive cylinders Over-sized 53" tall carriage for superior strength and durability Electric / hydraulic power system Large, 17" x 19" A36 steel base plate Self-lubricating dura-glide UHMW polyethylene bearing system Safety locks in each column spaced every 3" Automatic arm restraints Heavy-duty 1/2" aircraft-quality equalizer cables Oversized cable sheave diameter reduces cable fatigue 4-piece 63mm stackable adapter set comes standard Triple-telescoping arm design Versatile drop-in contact pads with stackable adapters ALI approved MODEL XPR-10AS-168 Lifting Capacity* 10,000 Lbs. / 4,536 kg. *Max Capacity / Front Axle 5,000 Lbs. / 2,268 kg. *Max Capacity / Rear Axle 5,000 Lbs. / 2,268 kg. A - Height Overall: 169" / 4,293 mm.* B - Width Overall: (NARROW) 137" / 3,480 mm . B - Width Overall: (WIDE) 145" / 3,683 mm. C - Width Outside of Columns: (NARROW) 133" / 3,378 mm. C - Width Outside of Columns: (WIDE) 141" / 3,581 mm. D - Floor To Overhead Switch: 165" / 4,191 mm.* E - Inside Columns: (NARROW) 104" / 2,642 mm. E - Inside Columns: (WIDE) 112" / 2,845 mm. F - Reach (Front Arm Min.): 23-1/2" / 597 mm. G - Reach (Front Arm Max.): 45-1/2" / 1,156 mm. H - Reach (Rear Arm Min.): 42-1/2" / 1,079 mm. I - Reach (Rear Arm Max.): 60" / 1,524 mm. J - Min. Pad Height: 4.25" - 6-3/4 / 108 mm. - 171 mm. K - Rise: 69" / 1,753 mm. L - Max Lift Height (Pad Only): 73" - 75" / 1,854 - 1,905 mm. M - Max Lift Height (3" Adapter): 75.5" - 77.5" / 1,917 mm. - 1,968 mm. N - Drive-Thru Clearance: (NARROW) 94" / 2388 mm. N - Drive-Thru Clearance: (WIDE) 102" / 2591 mm. Screw Pad Adjustment: 2" / 51 mm. Motor (**) 220 VAC / 60 Hz. 1Ph. Time of full Rise: 45 Seconds Max Load Per Arm: 2,500 Lbs. / 1134 Kg. *Not all BendPak lift models meet the standards as prescribed by ANSI/ALI ALCTV-2006 or ANSI/UL 201. The BendPak XPR-10AS-168 future-proofs your business. Get the same exceptional direct-drive lifting performance, clearfloor convenience and genius asymmetrical rotated post system as with the standard XPR-10AS, but with an added 23 up top. Make sure your business can specialize in taller, Sprinter delivery, service and transportation vehicles before its too late. The BendPak XPR-10AS-168 is the super-industrial-strength piece of equipment that has it all: leading-edge technology, top-of-the-line materials, design thats way ahead of its time and a 5-ton lifting capacity. Fits in shops with ceilings higher than 14. The XPR-10AS-168 features double-telescoping screw pads with gouge and tear-resistant polyurethane pads to help increase workplace safety and reduce operating costs. A set of our 63 mm stacking adapters included as standard accessories. Our newest line of XPR-Series 2-Post lifts offers a wide selection of durable, safe and reliable systems for virtually every lifting application. Specifically, the powerful and secure asymmetric XPR-10AS-168 is an incredibly rapid lift with a robust menu of features to increase efficiency and productivity, without overwhelming you with serviceable parts and necessary maintenance. The results are lower operating expenses and higher productivity. If youre looking to make more money in less time than ever before, youll find that the new XPR-10AS-168 lift is the perfect addition to your shop. Dont get us wrongwe like to keep it simple at BendPak, but we definitely dont dumb it down. Featuring a revolutionary 30° rotated column scheme for added door-opening clearance, the XPR-10AS-168 minimizes costly damage to customer vehicles and interior car access, even when its between the posts. Plus, the unique Tru-Metric carriage and arm design combine to give users the ability to load vehicles either symmetrically (centerline of vehicle at column) or asymmetrically (centerline of vehicle behind column). Its completely up to you. Tall, narrow fleet vans have been the rage in Europe for more than a decade and are just now becoming popular in the United States. Universally referred to as Sprinters, these aerodynamic and fuel-efficient vehicles captured 3.5% of the full-size van market in 2005. Four short years later, that number rose to almost 18%. Now, some estimates suggest it will reach as high as 23% before the end of the decade. Companies like FedEx, DHL and Microsoft already employ Sprinters for delivery and transportation services. Dont they sound like the kinds of clients youd like to have? Here at BendPak, we believe the best way to get ahead is by thinking ahead. Thats why weve redesigned most of our two-post lifts to accept taller vehicles like the Sprinter. All of the extended height models in our XPR-Series can easily lift some of your largest full-sized pickups and commercial vehicles (including Sprinters), yet still provide specific capability for sport and compact cars, both foreign and domestic. The XPR-10AS-168 is a rugged, close-top model lift with a 10,000-lb. maximum lifting capacity. Sound complicated to operate? Dont worry. When it comes to ease of use, our dual-synchro equalization system and user-friendly controls are the stuff of legend. All of BendPaks extended height, clearfloor asymmetric model lifts feature dual direct-drive low-pressure cylinders that minimize leakage and reduce the workload placed on the entire hydraulic system. This exclusive BendPak design feature saves you maintenance costs throughout the life of your liftyou arent going to find friendly sensibility like this anywhere else. Some more BendPak XPR-Series exclusives include: 16 individual maintenance-free UHMW load bearings, single-piece columns, triple-telescoping arms, extra-tall lifting carriages and oversized 5 cable sheaves to vastly extend the life expectancy of moving suspension components. And, to better cater to your specific lifting needs, we offer similar model lifts with optional specialty arm configurations. The entire XPR-Series is a reflection of BendPaks continuing commitment to producing lifts of only the highest quality, maximum safety and utmost reliability. Featuring the most advanced engineered technology available in the industry, these lifts are built to safety standards well above normal OSHA/ALI/ETL requirements. The XPR-Series lifts include a wealth of standard and optional features to support the operators need for performance and security. Combined with BendPaks tradition of durable, reliable construction, the XPR-Series has become the new industry benchmark that others are sure to follow. Whatever your requirements, theres a BendPak XPR-Series 2-Post lift designed to meet your needs. The XPR-Series offers an abundant roster of options and accessories that allows you to fully tailor your lift to your unique circumstance. But long before you start looking at options, youll be impressed with the long list of standard features and capabilities packed into every BendPak XPR-Series lift. Bottom linewhen you buy BendPak, you can expect a significant boost in performance and life expectancy. In fact, your BendPak XPR-10AS-168 might be the last lift you ever purchase. No one surpasses us in quality and safety. Not now, not ever. When you get a BendPak, you get more than just a fantastic lift. You get peace of mind. Thats the BendPak benefit. Getting the right lift for your application is easy with the help of your local BendPak dealer or by investigating the customer focused product materials found on our website. Every XPR-10AS-168 comes with: Direct-Drive two-post car lift technology BendPak two-post lifts feature low-pressure HVLP direct-drive cylinders eliminating the need for lifting chains or screw mechanisms most commonly found on other lift designs. Dual HVLP low-pressure cylinders minimize leakage and offer better reliability, smoother operation and less maintenance costs throughout the life of your lift. High-volume, low-pressure equates to less workload placed on the entire hydraulic system. Direct-Drive technology is preferred on commercial-grade two post car lifts as it has it has fewer moving parts than a chain-over-roller cylinder configuration. Pressurized hydraulic fluid flows from the power-unit, through the hollow cylinder rods then enters the cylinder body and fills the inside cavity. The pressure of the hydraulic fluid extends the piston rod downward raising the cylinder body and lift carriages. A dual-synchro equalization system maintains equal lifting and provides operators with a stable, level vehicle working condition. 30° rotated columns The XPR-10AS-168 features rotated columns for added clearance when opening vehicle doors. At the same time, swing-away arms provide a larger drive-thru clearance. Two lifts in one Our asymmetric models feature the exclusive Tru-Metric arm design to provide variable arm-position configurationseither symmetric or asymmetric, providing greater versatility for greater service capability. Its like two lifts in one. Clearfloor convenience Our clearfloor models provide unobstructed floor space allowing technicians to easily move toolboxes, transmission jacks, oil drains and other equipment underneath the elevated vehicle. Triple-telescoping front arms and two-stage rear arms Increases overall arm positioning for lifting a variety of different wheel base vehicles. Overall arm sweep and minimum arm reach are also extended to precisely lift vehicles that have unibody construction, OEM recommended pick-up points and wide and / or narrow wheelbase configurations. Optional column extension Gives you the flexibility of increasing the overhead clearance to maximize the vehicles you can service. Low-profile, dropped-end frame contact pads Squeeze under even the lowest compact and sport vehicles. Included truck and van adapters Others might charge extra for these necessary adapters, but theyre standard with every XPR-Series lift. Ideal for trucks and vans with running boards or auxiliary fuel tanks. Lowered arm tube supports To minimize the chance of damaging vehicles with low-hanging vehicle doors, we completely redesigned our arm tube supports to allow for better clearance. Automatic arm restraints Each arm is equipped with durable arm restraints that automatically engage each time the lift is raised. When the lift is lowered, the gear arm restraints automatically disengage to provide easy positioning of the lift arms. Taller lift carriages Take a close look at our lift carriages (the lifting assembly that the arms are attached to) and then take a look at the competition. Youll notice our 53" tall carriages are considerably taller than most, which minimizes the stress placed on the load bearings and columns. Maintenance-free load bearings Rather than using roller bearings that need to be constantly lubricated, every XPR-Series lift carriage uses high-tech UHMW (ultra-high molecular weight polyethylene) load bearings that never need lubrication and are designed to last the entire life of the lift. Single-piece columns We purposely manufacture the columns using single-piece construction for added strength and less fatigue under heavy load conditions. Dual direct-drive technology By utilizing two, low-pressure HVLP direct-drive cylinders, weve eliminated the need for lifting chains or screw mechanisms most commonly found on other lift designs. HVLP direct-drive technology offers better reliability, smoother operation and less maintenance. High-volume, low-pressure equates to less workload placed on the entire hydraulic system. Single-point safety release The single point safety release and "dead man" style operation controls makes every one of our XPR-Series lifts easy to operate and safe to use. On the level Our dual-synchro equalization system maintains equal lifting and provides operators with a stable, level vehicle working condition. Auto shutoff A rigid, padded safety shutoff bar automatically stops the lift should a vehicle come in contact with overhead structure. Industrial-grade hydraulic cylinders Integrated into every XPR-Series hydraulic cylinder is a one-piece, pilot fitted, machined steel piston that is wrapped with specially designed, pressure loaded U-cup piston seals, backups and wear bands that virtually eliminate any fluid bypass. The micro-smooth chrome-rod is machined from high-yield, ground and polished C-1045/50 micro-alloy steel and plated to a minimum of .001" diametrically, to ensure superior cylinder operation and life. The superior-design high durometer, mechanically-loaded rod seals make rod leakage is a thing of the past while a specially formulated abrasion-resistant urethane rod wiper provides exclusion protection. The welded cylinder body is made from robust steel tubing produced to exceed ASTM specifications. This combination of superb base material and superior processing ensures that the cylinders remain straight, smooth and last a very long time. High-speed hydraulics Free-flow, high-pressure 3/8" hydraulic lines, a high-flow pump and integrated AC power-unit increase ascent and descent speed rates for enhanced productivity. Durable powder-coat finish All XPR-Series lifts feature a durable powder-coat finish that gives the metal a high-quality, extremely durable finish which can withstand even the harshest environmental or chemical conditions. Unlike other companies that claim to powder coat, we take pride in our meticulous 10-step process. First, all parts are visually inspected before being sandblasted. Afterwards, the parts are washed in our 5-stage phosphate tanks that can accommodate parts up to 25 long. Once cleaned, theyre immediately dried to avoid rust production, and then outgassed. Outgassing pre-bakes the parts in a curing oven, reducing the possibility of blemishes that may be hiding in the pores of the metal. If not properly outgassed, imperfections in the metal may bubble during the curing process and most likely will cause chips in the powder. After the parts are washed and outgassed, any surfaces and / or threaded holes that need to be masked or plugged, are done so with high-temperature masking tape and silicone plugs. Next, the parts are given a quick thinner wipe to remove any light debris or fingerprints, before being hung on an electrostatically grounded conveyor line. The powder is finally applied using an electrostatic spray gun. The powder "sticks" to the surface in a fashion similar to how dust sticks to a television screen. Once the parts are powder coated, the carts are rolled into our curing oven and baked at 400° F for 45 minutes. Detailed instructions Included with every lift are detailed installation and maintenance instructions, graphic safety decals, maintenance decals, vehicle lifting point guide and a safety instruction placard to train personnel on proper safety procedures and maintenance guidelines. *Not all BendPak lift models meet the standards as prescribed by ANSI/ALI ALCTV-2006 or ANSI/UL 201.
